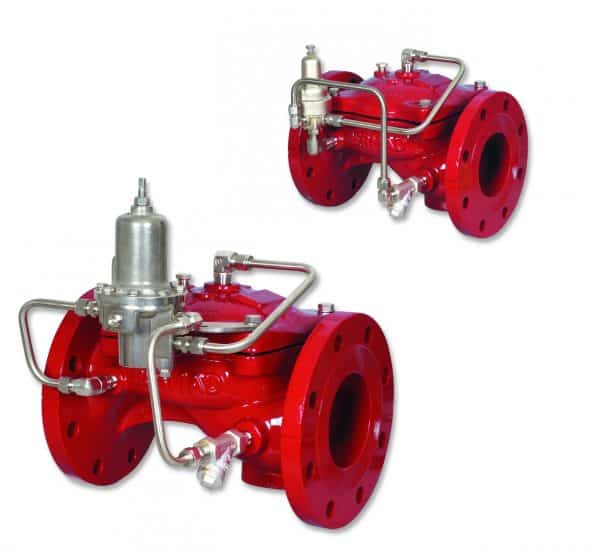

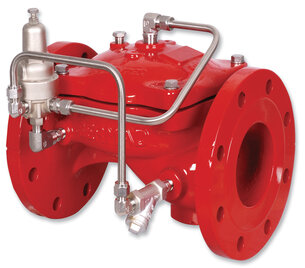

Pressure Relief Valve FP-430-UF

The BERMAD Model FP 430-UF pilot operated valve prevents over pressure, maintaining a constant preset system pressure regardless of fluctuating demands. UL-Listed (up to 175 psi) and FM-Approved according to NFPA-20. The valve offers reliable performance in: Refineries, petrochemical complexes, tank farms, high-rise buildings, aviation and airports, marine and on-shore installations.

Product Features & Benefits
  • Advanced Elastomeric Globe type – Low pressure loss
  • One-piece molded single moving part – No maintenance required
  • Simple design – Cost effective
  • In-line serviceable – Minimal down time
Typical Product Applications

Typical Applications

  • Pressure relief for individual diesel fire pump
  • Pump station pressure relief
  • Centralized thermal pressure relief
  • Foam recirculation; maintains required
  • foam pressure Zone safety relief

Operation

The BERMAD Models FP 430-UF and FP 730-UF are pilot operated valves that prevent over pressure, maintaining a constant preset system pressure regardless of fluctuating demands. They are FM Approved and UL Listed up to 175 psi (FP 430-UF) & 350 psi (FP 730-UF) according to NFPA-20.
