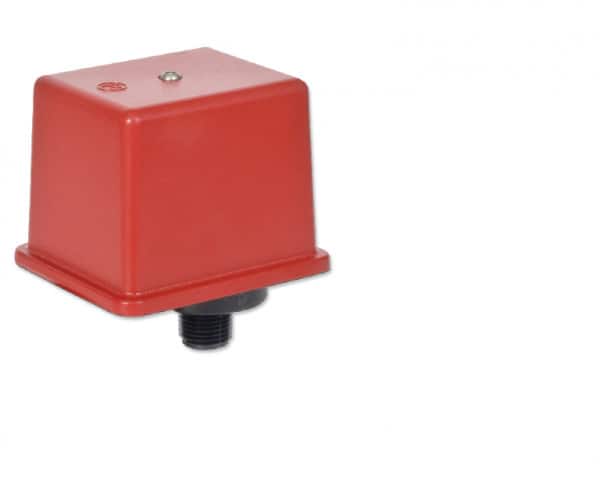

General Purpose Pressure Switch Model PS-10

The Model PS-10, adjustable, pre-set Pressure Switch is suitable for pressure and/or flow detection in BERMAD valve systems such as Deluge or Pre-action, or with other control valves and is suited for non-hazardous locations. The model PS-10 is also used to provide a low pressure supervisory signal for BERMAD Pre-action Systems and pneumatically controlled deluge valves.

Product Features & Benefits
  • Solid metal enclosure
  • IP66 / NEMA 4 watertight and dust proof when used with suitable cable connection
  • 20.7 bar (300 psi) system pressure rated
  • One SPDT or two SPDT version for DPDT action (marked with 2A suffix)
  • Convenient field adjustability
  • Global approvals
  • Reliable and dependable
Typical Product Applications

The Pressure Switch shall be connected to the BERMAD valve alarm discharge piping. Ensure that no shut-off valves are located between the alarm piping and the Pressure Switch.

The device should be mounted in an upright position. IP66/NEMA 4 conduit fitting or cable gland is required for outdoor installations.
