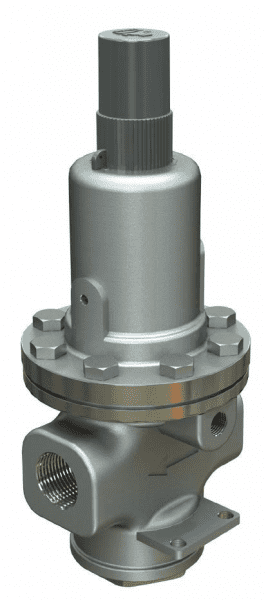

High Capacity Pressure Reducing Pilot Valve Model FP#2HC

  The BERMAD FP#2HC is a High Capacity, direct acting and spring loaded diaphragm type, Pressure Reducing Pilot Valve. The single port is actuated by a pressure responsive, spring loaded diaphragm, which tends to reach equilibrium with the adjustable pre-set spring force, thereby reducing the high inlet pressure to the chosen pre-set outlet pressure value. When installed as a Pressure Reducing pilot valve on BERMAD Water Control or Deluge valves, it automatically controls the main valve to reduce a higher inlet pressure to a lower pre-set outlet pressure, maintaining the chosen outlet pressure regardless of fluctuations in pressure or flow in the inlet supply line. The balanced poppet design ensures high accuracy and stability.

Product Features & Benefits
  • Internal pressure sensing
  • Differential pressure sensing option
Typical Product Applications
  • 400Y pressure control deluge, sizes 12-16″ (model FP#2PC)
  • 42T pressure reducing valves, sizes 12-16″ (model FP#2HC)
  • PDCV, Pressure Differential Control Valve (model FP#2HC-D)
  • Direct-Acting Water Pressure Reducing Valve (model FP#2HC)
