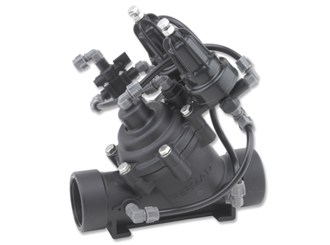

Pressure Reducing Valve IR-120-54-3Q-b

The BERMAD Model IR-120-54-3Q-b is a hydraulically operated, diaphragm actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure. It is a Normally Closed valve that opens in response to a remote pressure drop command and shuts in the absence of that command. The BERMAD Model IR-120-54-3Q-b also serves as a Pressure Relief Valve protecting the system even when in closed position.

    • Normally Closed PRV with Relief Override Feature
        • Protects downstream and upstream systems



        • Closes upon control failure



        • Amplifies and relays weak remote command







    • Pressure Reducing Servo Pilot Controlled
        • Dynamic integrated needle valve



        • Settable to 0.5 bar; 7 psi



        • Very low hysteresis







    • Engineered Plastic Valve with Industrial Grade Design
        • Highly durable, chemical and cavitation resistant



        • No internal bolts and nuts







    • hYflow ‘Y’ Valve Body with “Look Through” Design
        • Ultra-high flow capacity – Low pressure loss







    • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
        • Accurate and stable regulation with smooth closing



        • Prevents diaphragm erosion and distortion







Typical Applications

  • Computerized Irrigation Systems
  • Drip-Tape Systems
  • Low Set Pressure Applications
  • Remote and/or Elevated Plots
  • Distribution Centers
  • Energy Saving Irrigation Systems





[1] Bermad Model IR-120-54-3Q-b opens upon pressure rise
command, establishes reduced pressure zone, and relieves
supply pressure peaks even when in closed position.
[2] BERMAD Air Valve Model ARA-A-P-P
[3] BERMAD Vacuum Breaker Model ½”-ARV
