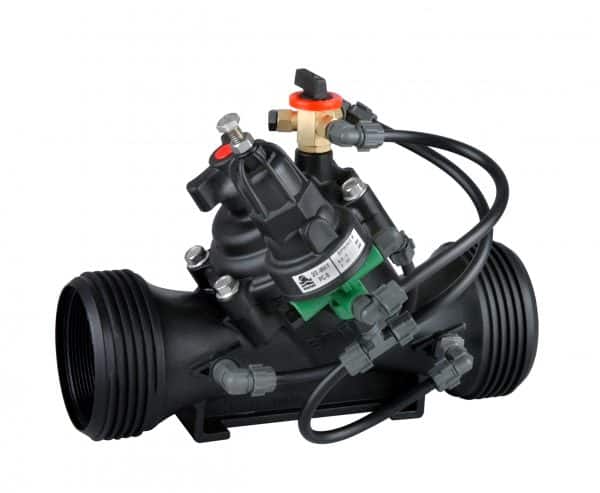

Pressure Reducing Valve IR-120-bZ

The BERMAD Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand or varying upstream pressure.

  • Line Pressure Driven, Hydraulically Controlled

-Protects downstream systems

  • Pressure Reducing Servo Pilot Controlled

-Dynamic integrated needle valve

-Settable to 0.5 bar; 7 psi

-Very low hysteresis

  • Engineered Plastic Valve with Industrial Grade Design

-Highly durable, chemical and cavitation resistant

-No internal bolts and nuts

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing

-Requires low opening and actuation pressure

-Prevents diaphragm erosion and mechanical stress

  • Simple In-LIne Inspection and Service.

Typical Applications

  • Drip-Tape Systems
  • Low Set Pressure Applications
  • Low Supplied Pressure Irrigation Systems
  • Energy Saving Irrigation Systems




[1] BERMAD Model IR-120-bZ establishes reduced pressure
zone protecting laterals and distribution line.
[2] BERMAD Automatic Metering Valve Model IR-900-D0
[3] BERMAD Vacuum Breaker Model ½”-ARV
