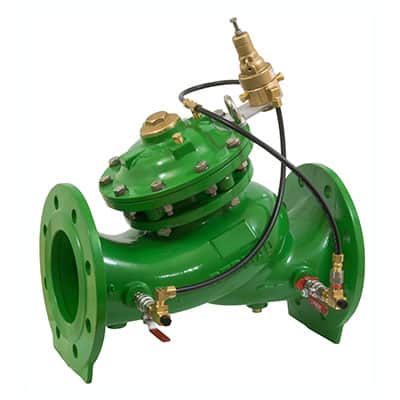

Pressure Reducing Valve IR-720
The Model 720 Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand or varying upstream pressure.
Line pressure driven – Independent operation
In-line serviceable – Easy maintenance
Double chamber design
- Moderated valve reaction
- Protected diaphragm
Flexible design – Easy addition of features
Variety of accessories – Perfect mission matching
“Y” or angle, wide body – Minimized pressure loss
Semi-straight flow – Non-turbulent flow
Stainless Steel raised seat – Cavitation damage resistant
Obstacle free, full bore – Uncompromising reliability
V-Port Throttling Plug – Low flow stability
■ UL Listed for fire protection – FP-720-UL
■ Solenoid control – 720-55
■ Check valve – 720-20
■ Solenoid control & check valve – 720-25
■ Proportional – 720-PD
■ Automatic regulation override – 720-09
■ High sensitivity pilot – 720-12
■ Emergency pressure reducing valve – 720-PD-59
■ Downstream over pressure guard – 720-48
■ Electrically selected multi-level setting – 720-45
■ Electronic multi-level setting, Type 4T – 720-4T
■ Electronic pressure reducing valve – 728-03
