Pressure Relief/Sustaining Valve IR-730-55

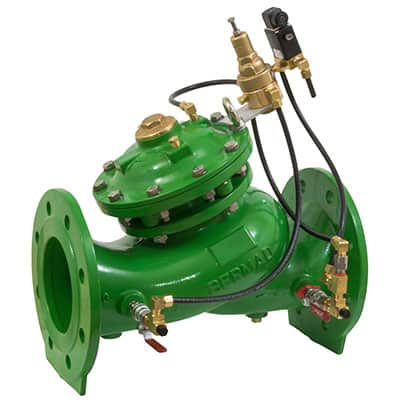

The Model 730-55 Pressure Relief/Sustaining Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve that sustains minimum pre-set, upstream (back)pressure regardless of fluctuating flow or varying downstream pressure. It also either opens or closes in response to an electric signal. When installed as a circulation valve, the Model 730-55 relieves excessive line pressure when above maximum pre-set.

Product Features & Benefits
  • Line pressure driven – Independent operation
  • Solenoid controlled
    • Low power consumption
    • Wide ranges of pressures and voltages
    • Normally Open, Normally Closed, or Last Position
  • Balanced seal disk – High relief flow capacity
  • In-line serviceable – Easy maintenance
  • Double chamber design
    • Moderated valve reaction
    • Protected diaphragm
  • Flexible design – Easy addition of features
  • Variety of accessories – Perfect mission matching
  • “Y” or angle, wide body – Minimized pressure loss
  • Semi-straight flow – Non-turbulent flow
  • Stainless Steel raised seat – Cavitation damage resistant
  • Obstacle free, full bore – Uncompromising reliability
  • V-Port Throttling Plug – Low flow stability
Typical Product Applications

Typical Applications

  • Circulating Valve with Reservoir Overflow Protection
    Water is supplied to the consumer network from the reservoir or directly from the major supply network:
  • During pumping from the reservoir, the Normaly Closed Model 730-55, with energized solenoid, serves as a circulation valve.
  • During direct supply, pressure might be higher than pilot setting, possibly causing reservoir overflow. The de-energized solenoid keeps the Model 730-55 closed, preventing reservoir filling from this source.
