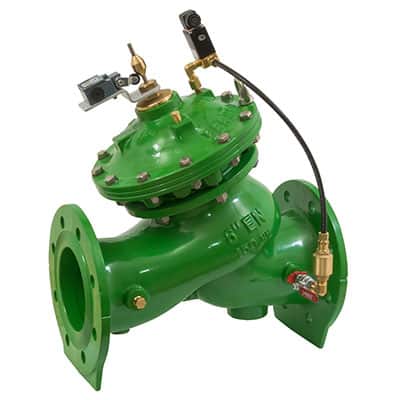

Booster Pump Control Valve Quick Active Check Valve IR-740-2S

Double chambered, hydraulically operated, active check pump control valve that opens fully or shuts off in response to electric signals. The valve isolates the pump from the system during pump startup and shutdown, thereby preventing pipeline surges. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.

Product Features & Benefits

-Designed to – stand up to the toughest conditions

  • Excellent anti-cavitation properties
  • Wide flow range
  • High stability and accuracy
  • Drip tight sealing

-Double chamber design

  • Moderated valve reaction
  • Protected diaphragm
  • Optional operation in very low pressure
  • Moderated closing curve

-Flexible design – Easy addition of features
-Obstacle free flow pass
-V-Port Throttling Plug (Optional) – Very stable at low flow
-Compatible with various standards
-High quality materials
-In-line serviceable – Easy maintenance

Typical Product Applications
  • Independent check feature- 740-2S
  • Pressure sustaining – 743
  • Pressure reducing – 742
  • Flow control – 747-U
  • Pump circulation control – 745
  • Electronic control – 740-18
  • Pressure sustaining and Pressure reducing – 743-2Q
    See relevant BERMAD publication
