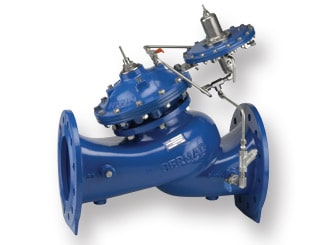

Level Control Valve WW-750-80-X
The Model 750-80-X Level Control Valve is a hydraulically controlled, diaphragm actuated control valve that shuts off at pre-set reservoir high level and fully opens in response to an approximately one meter (three foot) level drop, as sensed by the 3-Way altitude pilot mounted on the main valve.
- Line pressure driven – Independent operation
- Bi-level altitude pilot
- No float, simple installation
- On/Off service
- No cavitation damage
- Suitable for low quality water
- Reservoir inherent refreshing
- Double chamber design
- Moderated valve reaction
- Protected diaphragm
- External installation
- Easy access to valve
- Easy level setting
- Less wear and tear
- Balanced seal disk – High flow capacity
- In-line serviceable – Easy maintenance
- Flexible design – Easy addition of features
Typical Applications
Bi-Level Water Towers
The Model 750-80-X senses the static head of the water level in the tank by means of a high sensitivity pilot. To do so accurately, the sensing tube end must be connected to a “still point” at the bottom of the tank. The drainage pipe provides this “still point,” a location not influenced by flow velocity as in filling and outflow
