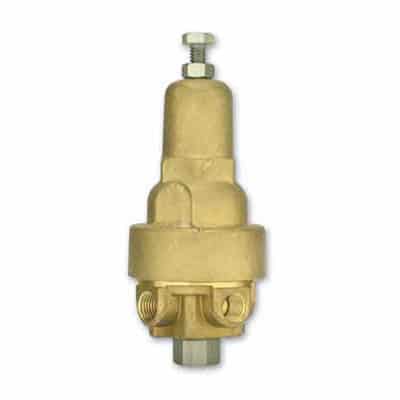

Pressure Sustaining Pilot Valve, Metal PC-30-M

This is a 2-way direct acting pilot valve, actuated by a pressure responsive
diaphragm, which seeks to reach equilibrium between hydraulic and
set spring forces. When used in a pressure relief/sustaining circuit, the
pilot modulates open as upstream pressure rises above
set point.

■ Differential pressure sensing
■ Direct pressure gauge installation

■ Pressure Sustaining valves sizes 11/2-6” (Standard model PC-30-M).
■ Differential pressure sustaining Valves sizes 11/2-6”
(Modified to differential sensing PC-30-M-D)
