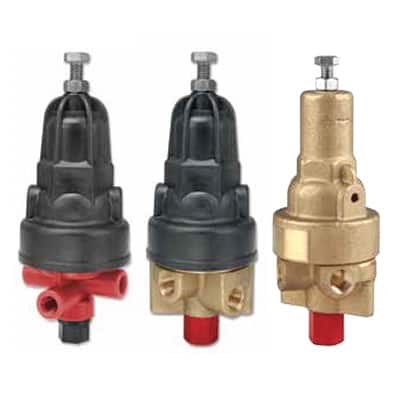

SHARP 3-Way Mini-Pilot PC-SHARP-X

SHARP is the most sensitive and accurate mini-pilot in the market. It is a multi-purpose 3-Way mini-pilot, diaphragm-operated, based on a balance between the hydraulic force acting on the diaphragm, and the mechanical force of the calibration spring. The SHARP replaces the PC-X mini-pilot through all applications range.

Product Features & Benefits

■ Universal Mini-Pilot: Serves as a pressure reducing pilot,
pressure sustaining pilot, flow control Pilot [PC-XD] & hydraulic relay
■ Easy fit-in: Connections are identical to PC-X & Servo
(PC-S)mini-pilots, allowing easy & simple on-site upgrade
■ High Quality: All calibration springs made of Stainless Steel
■ Accurate & Flexible: Pressure setting range: 0.5-10bar; 8-145psi.
Tolerance: < 2m; 3psi

Typical Product Applications

■ Pressure Reducing
■ Pressure Sustaining
■ Pressure Reducing & Sustaining
■ Flow Control (with Sealed Cover “D”) Hydraulic Relay
