Pressure Sustaining Pilot Valve Model #83 | Waterworks

IR Pilot 83

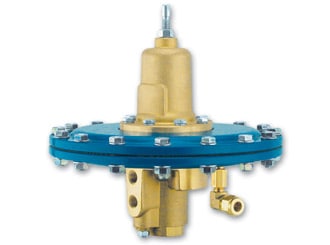

This pilot integrates all principal functions of a 2-Way control circuit in a single assembly. It is a high sensitivity, direct acting valve, actuated by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force. The pilot modulates open as upstream pressure rises above set point. An integral needle valve acts as an upstream flow restrictor as well as a closing speed control.

Typical Product Applications
  •  Modulating Altitude Level Control Valves (at reservoir outlet) sizes 11/2-14”
  •  High Sensitivity Pressure Sustaining Valves sizes 11/2-14”
