Full Modulation Solution

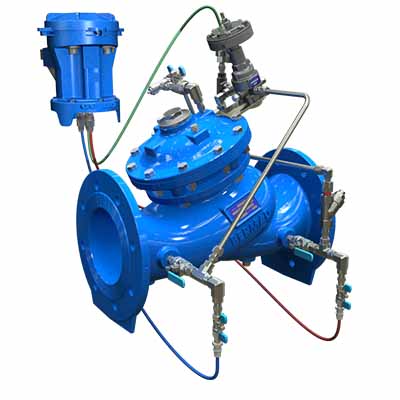

WW 720-DC1-SIGMA
Hydraulically operated, full modulation pressure reducing solution that reduces higher upstream pressure to lower downstream pressure, based on flow or time windows, regardless of fluctuating demand or varying upstream pressure. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The 720-DC1 is equipped with DELTA a stand-out pressure management controller for system optimization. It provides a calmer network, an improved efficiency and a reduction of leakage and bursts. The end result is a reliable water supply and better service for the client. The DELTA is a fully remote controlled fail safe battery operated controller. The DELTA logs the data and uses cyber secured technology to transmit the data to a user-friendly cloud platform.
Features and Benefits – Valve
- Designed to – stand up to the toughest conditions
- Excellent anti-cavitation properties
- Wide flow range
- High stability and accuracy
- Drip tight sealing ֺDouble chamber design
- Moderated valve reaction
- Protected diaphragm
- Optional operation in very low pressure
- Moderated closing curve
- Flexible design – Easy addition of features
- Obstacle free flow pass
- V-Port Throttling Plug (Optional) – Very stable at low flow
- Compatible with various standards
- High quality materials
- In-line serviceable – Easy maintenance
Features & Benefits – DELTA Controller
- Full modulation pressure reducing with the DELTA internal solenoids and a BIAS chamber
- 2 pressure regimes by switching between “Low” to “High” set points according to flow rate or time window (Day/Night) Up to 16 flow or time windows
- Highly accurate and stable regulation
- Latch override to fully open the valve at insufficient pressure supply, or fully close in event of pipe burst
- Full communication to Bermad cloud or to other platforms via API or FTP for monitoring and remote setting
- 5 years internal battery operated or external power
- Large capacity data logging
- Intuitive and user friendly platform
- Advanced modern graphs and reports
- Alert and notifications via E-mai
