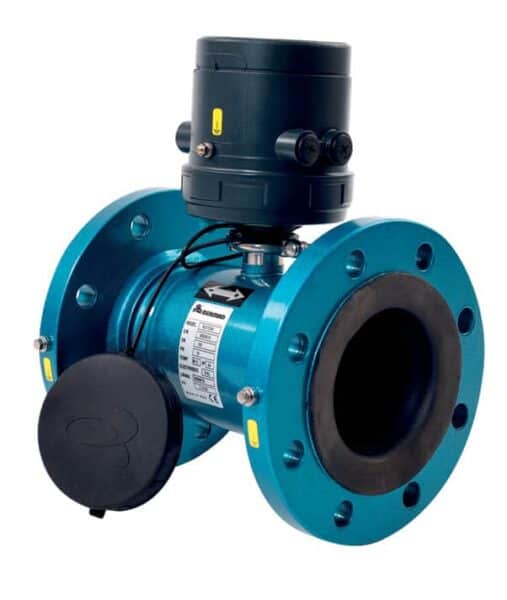

Battery Operated, Zero D Requirement Electromagnetic Flow Meter MUT2300 with MC406

The MUT2300 with MC406 is a battery-powered electromagnetic water meter for use in district metering areas (DMA), water abstraction, and custody transfer measurement of potable water (MI-001, OIML R49), irrigation, and many other applications. Unlike other water meters, the MUT2300 is a maintenance-free meter, offering a much wider range of flow, in a compact or remote mounted version. Thanks to the optimized flow profile, the MUT2300 can be installed virtually anywhere without straight inlet or outlet runs, behind pipe bends, slide valves or a reduction in the pipe. Its measuring tube is in fact specifically designed to enable a stable measurement even at the lowest flow rates, maintaining a neglectable pressure loss in all its range. With optional pressure and temperature sensors, GSM/GPRS integrated modem and 12…24Vdc power source, the meter is the perfect solution for leak detection, and pressure management systems. The highly robust structure, allows burial installation or the use in flooded areas. A full on-site verification without process interruption can be carried out using the Field Verificator service tool.

Product Features & Benefits
  • High performances to a low cost of ownership: Capability to read flow velocities of 0.015 m/s (MID-001 OIML R49 certified), within Class 1 accuracy
  • Up to 10 years of battery life: High-efficiency, technologically advanced battery powered converter
  • U0-D0: Zero upstream and downstream distances (MID-001 OIML R49 certified)
  • No data lost: Data automatically stored in the internal EEPROM memory. Up to 100.000 lines of active datalogging
  • Information always available: Add-on communication module GSM/GPRS automatically sends the information via SMS, e-mail or on a website portal www.euromagdata.com with personal ID and password. Accessible also from smart phones and tablets. Configurable FTP communication.
  • Empty pipe detection: Empty pipe electrode supplied as standard (≥ DN65). Empty pipe detection on measuring electrodes standard for all sizes
  • Flow – pressure – temperature: all at the same time: Add on modules of temperature and pressure readying make the MUT2300 with MC406 one of the most complete electromagnetic flowmeter available in the market
  • Easy management, easy programming: A software is supplied with the unit to allow users to communicate with the MC406 via IRCOM port to any pc, lap top or windows tablet.
  • Certifications and compliance: OIML R49-MID Class 1 (on request) / EX – IEC IECEx (on request and only separate version) / NSF ANSI61 (On model MUT2300US)
  • Always verified: The Euromag FIELD VERIFICATOR is available for full on-site verification, without interruption of the process
Typical Product Applications
  • District metering of potable water
  • Distribution, municipal water
  • Overnight applications with very low flow rate
  • Industrial process liquids, muds and concretes
  • Installation in small places without straight distances
  • Leak detection and monitoring
  • Fiscal measures, custody transfer
  • Irrigation
  • Booster pump stations
  • Lift stations
