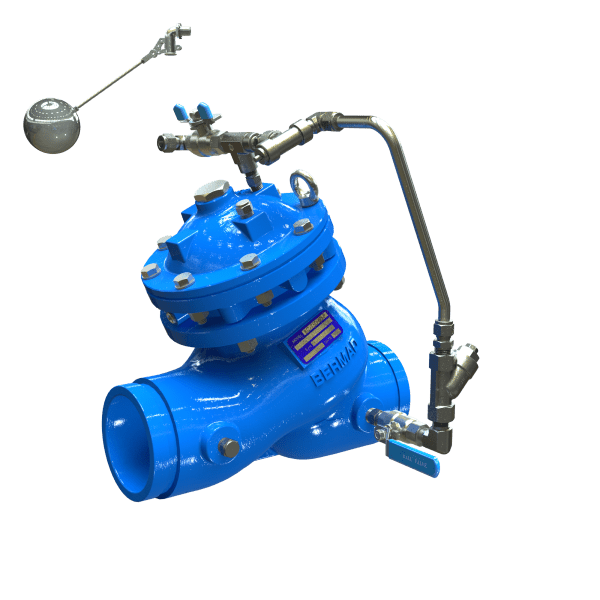

Level Control Valve with Modulating Horizontal Float BC-750-60-P

Hydraulically operated, float controlled valve that controls reservoir filling and reservoir level.
Reservoir filling is accomplished in response to hydraulically controlled modulating horizontal float that maintains a constant water level, regardless of fluctuating demand.

BERMAD 700 series valves are hydraulic, oblique pattern, globe valves with double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications.

  • High Quality Construction Materials – Reliable, resilient and long lasting operation
  • Robust Design – Suitable for constant, intense operation
  • In-Line Serviceable – Quick and easy maintenance and service
  • Line Pressure Driven – Independent operation, no external power needed
  • Unitized Actuator Assembly – Minimal downtime
  • Accurate and reliable level control; prevents reservoir overflow and cut-offs
  • Ensures uninterrupted supply for building occupants dependent on reservoir system for their water needs
  • Easy to horizontally mount and calibrate lightweight float;simple installation and maintenance, long lasting smooth and reliable operation
  • 2-way control loop – maintains accurate and stable reservoir level; specially suitable for large surface / low depth tanks
  • Straightforward control loop structure with minimal use of accessories and tubing – prevents breakdowns, overflows and vandalism
  • Level Control in water reservoirs of buildings, including basements and roof-top reservoirs, pressure breaking tanks, emergency water storage, and so others.
  • Priority and backup management of reservoirs
  • Constant level control systems where maintaining full tank level is required
  • Level control of undersized tanks in potable water systems in buildings

Water Reservoir Level Control System, featuring the BC-750-60-P that maintains constant water level in the reservoir.
As backup another level control valve is stationed upstream and calibrated to a slightly higher water level. The backup valve can be specified to operated hydraulically (BC-750-66-P) or electrically (BC-750-65-P).
