Double Chamber Hydraulic Control Valve IR-100-DC

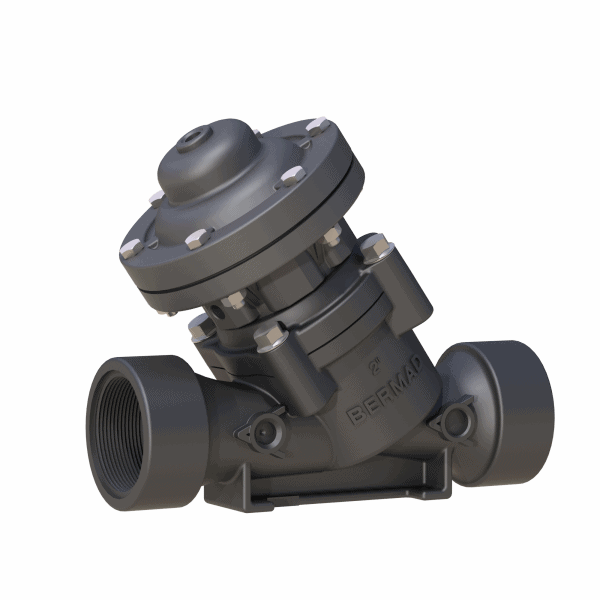

The BERMAD Model IR-100-DC is a double chambered,
hydraulically operated, diaphragm actuated globe control valves
in either the standard oblique (Y) or angle pattern design.
The valve comprises two major components: The body and
the actuator assembly. The actuator assembly is unitized and is
removable from the body as an integral unit. It consists of both
an upper and a lower control chamber. Each basic valve can
easily be configured, on-site, either as a single chamber
(Model 105), or a double chamber (Model 100). The shaft sub
assembly is center guided, providing an unobstructed seat area.
The Model 100 double chambered valve operation is independent
of valve differential pressure. This develops maximum power,
ensuring immediate valve response.

  • Hydraulic Control Valve

-Line pressure driven

-Meets all irrigation applications range

  • Double chamber

-Full powered opening and closing

-Decreased pressure loss

-No throttling noise

-Non-slam closing characteristic

-Protected diaphragm

  • Engineered Plastic Valve with Industrial Grade Design
  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • User-Friendly Design

-Simple in-line inspection and service
