Flow Control and Pressure Reducing Hydrometer IR-972-KVX

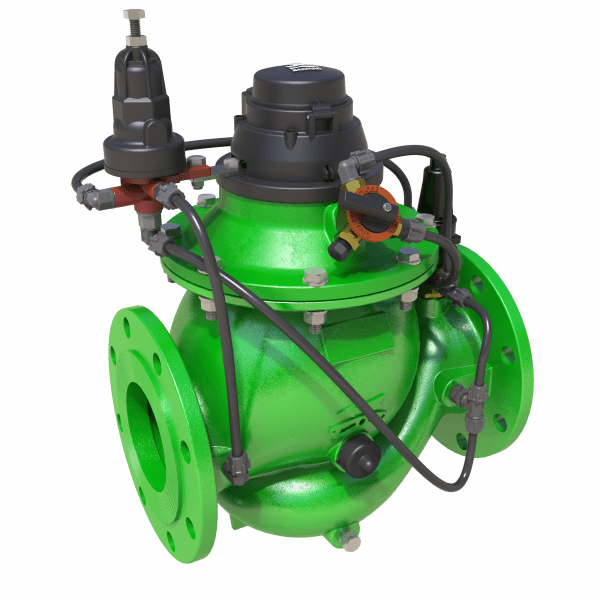

The BERMAD Model IR-972-KVX integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control
valve. Combining a Flow Meter and Main Valve, allows efficient irrigation control. The BERMAD Hydrometer limits the flow and downstream
pressure to a constant preset maximum.

  • Integrated “All-in-One” control valve

-Saves space, cost and maintenance

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device
  • Simple in-Line Inspection and Service
  • Line Pressure driven

-Independent operation

-Limits fill-up rate and consumer over-demand

-Protects downstream system

  • 3-Way control

-Opens fully when flow & pressure below setting

  • Pedal-Type Hydro-Mechanic Flow Pilot

-No added head loss

-Easy flow and pressure setting

-Wide setting range

  • Advanced control loop design

-Linear, accurate and stable modulation

-Convertible platform for vast number of applications

  • Easy on-site set point change

Typical Applications

  • Downhill Pressurized Supply Lines
  • Multiple Independent Consumer Systems
  • Line Fill-Up Control Solution
  • Pressure Reducing Systems
  • Flow Monitoring and Leakage Control




[1] BERMAD Model IR-972-KVX maintains system designed

flow and establishes reduced pressure zone.

[2] BERMAD Strainer Model 70-F
[3] BERMAD Combination Air Valve Model C30
[4] BERMAD Kinetic Air Valve Model K10
