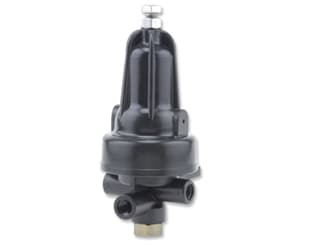

Quick Pressure Relief Pilot Valve, Plastic Model PC-3Q-P

Quick Pressure Relief Pilot Valve, Plastic Model PC-3Q-P

This pilot integrates all principal functions of a 2-Way control circuit in a single assembly. It is a direct acting pilot valve, actuated by a pressure responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. The pilot opens at upstream pressure rise above set point. An integral restriction acts as an upstream flow restrictor smoothing valve closing and simplifying the control circuit.

    •  Internal restriction







Typical Application

  • Pressure relief valve quick type sizes 11/2-4”



Download
English Ordering Guide Mini Pilots
Download
English Plastic Quick Pressure Relief Pilot Valve
Download
English Spare Parts - Irrigation
