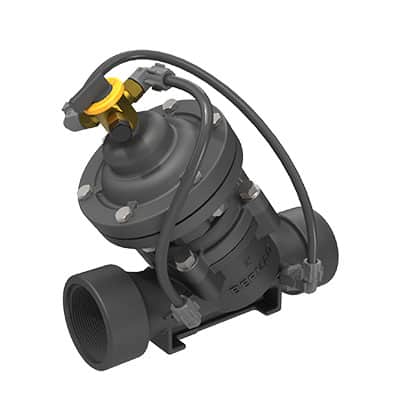

Pressure Reducing Valve Double Chamber IR-120-DC-PD-Z

The BERMAD Model IR-120-PD-Z Proportional Pressure Reducing Valve is a double chambered, hydraulically operated, diaphragm actuated, Pilot-Less control valve that reduces higher upstream pressure to lower downstream pressure, at a fixed ratio. The valve comprises two major components: The body and the actuator a lower control chamber. The double chambered valve operation is independent of valve differential pressure. This develops maximum power, ensuring immediate valve response combined with inherent non-slam closing.

Product Features & Benefits

Hֺֺydraulic Double chamber Control Valve

  • Line pressure driven
  • Full powered opening and closing
  • Protected diaphragm
  • Non-slam closing characteristic
    Eֺֺlegant simplicity
  • Most cost effective
  • Simple to maintain
  • No Pilot nor control Accessories

Eֺֺngineered Plastic Valve with Industrial Grade Design
hֺֺYflow ‘Y’ Valve Body with “Look Throug” Design

  • Ultra-high flow capacity – Low pressure loss

Uֺֺser-Friendly Design

  • Simple in-line inspection and service
Typical Product Applications

Pֺֺressure Reducing Stations
Lֺֺong downhill lines

  • Serial pressure reduction
  • Leakage and burst protection

Hֺֺigh differential pressure systems

  • Protection against cavitation damage
  • Throttling noise reduction
Downloads

Related Products

Hydraulic Control Valve Double Chamber

IR-100-DC-Z

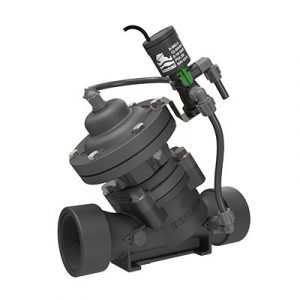

Solenoid Controlled Valve Double Chamber

IR-110-DC-X

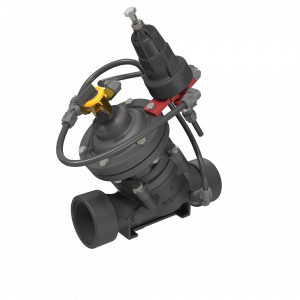

Pressure Sustaining Valve Double Chamber
