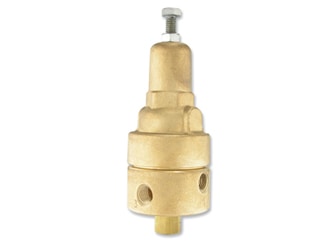

Positioning 3-Way Pilot Valve, Metal Model PC-X-M

This multi purpose, direct acting 3-way positioning pilot Valve is actuated by a pressure responsive diaphragm, which seeks to reach equilibrium between hydraulic and set spring forces. The pilot directs flow and pressure between its ports:

  • When sensed pressure is above set point, it connects port “0” to “3”.
  • When sensed pressure is equal to set point, it blocks connections between all ports.
  • When sensed pressure is below set point, it connects port “3” with “2”.

Relevant pressure is continuously sensed through port “1”.




Typical Applications

  •  Pressure Reducing Valves (Type X) sizes 11/2-6”
  •  Pressure Sustaining Valves (Type X) sizes 11/2-6”
  •  Adjustable 3-Way Hydraulic Relay (N.O. or N.C.)
  •  Automatic Regulation Override (feature 09) sizes 11/2-6”
